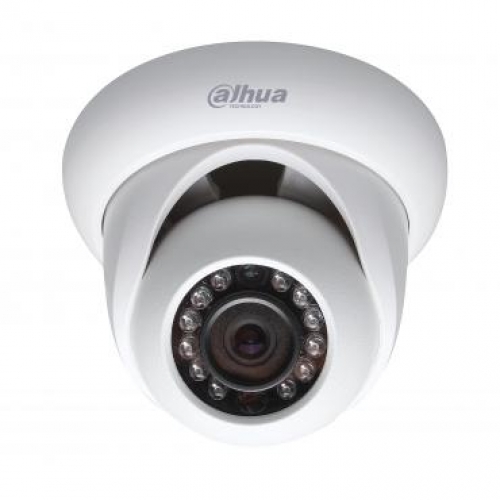

2MP Full HD Network Mini IR Dome Camera
|
HDW1220S IP Network Camera |
Powerful Features
-
1/3" 3 Megapixel PS CMOS - 25fps@1080P(1920x1080)
- Day/Night(ICR), AWB, AGC, BLC
- 3.6mm Fixed lens
- Max. IR LEDs length 20m, Smart IR
- Ingress Protection: IP66
- DC12V, PoE
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & iPhone, iPad, Adroid(DMSS)
PC CMS Software
-
Register up to 1000 channels connection and 64 live viewing at 1 screen, support max 121(11x11) view - Support DVRs, video servers, IP cameras, decoders and other network products connection.
- PTZ, bidirectional talk, camera settings, color adjustment
- Support device management, configuration, reboot and other operations
- Support decoder connection to realize virtual matrix system and video wall display
- Support different alarm types: external, motion detection, video loss, camera masking and etc.
- Support video monitoring project, layout configuration, recording plan and etc.
- Device status and other information provided in the "health report"
- Support video search from local PC, device itself and other storage center
- Used for the central monitoring system
Mobile Phone Surveillance Software
 |
|||
| iDMSS for ios System : | Support iPhone OS 4.1 or higher and iPad | ||
| gDMSS for Android System : | Support Android OS 2.0 or higher. | ||
| DMSS for Blackberry System : | Support Blackberry OS 4.6 or higher (Not support 7.0 OS). | ||
| DMSS for Symbian System : | Support Symbian S60 3rd. | ||
| DMSS for Window Mobile System : | Support Windows Mobile OS 5.0 or higher. | ||
| DMSS for Windows System : | Support Windows Phone OS 7.0 or higher | ||
     |
|||
Technical Specifications
| HDW1220S | |
| Image Sensor | 1/3" 3 Megapixel PS CMOS |
| Effective Pixels | 1080P(1920x1080) |
| Electronic Shutter | 1/3(4)~1/10000s |
| Synchronization | Internal |
| Min. Illumination | 0.1Lux ,0Lux IR on |
| Camera Features | |
| Max. IR LEDs Length | 20m, Smart IR |
| Day/Night | Auto(ICR) / Color / B/W |
| Noise Reduction | 2D |
| Lens | |
| Focal Length | 3.6mm Fixed Lens |
| Mount Type | Board-in Type |
| Video | |
| Compression | H.264/ MJPEG |
| Resolution | Up to 1080P(1920x1080) |
| Frame Rate | 25fps@1080P(1920x1080) |
| Bit Rate | H.264: 32K ~ 8192Kbps |
| Network | |
| Ethernet | 1 x RJ-45 (10/100Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| ONVIF | ONVIF Profile S |
| Max. User Access | 20 users |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
| General | |
| Power Supply | DC12V, PoE |
| Power Consumption | Max 4.8W |
| Working Environment | -20°C~+60°C / Less than 95%RH (no condensation) |
| Ingress Protection | IP66 |
| Dimensions | Ø108mm x 86mm |
| Weight | 0.36 |
