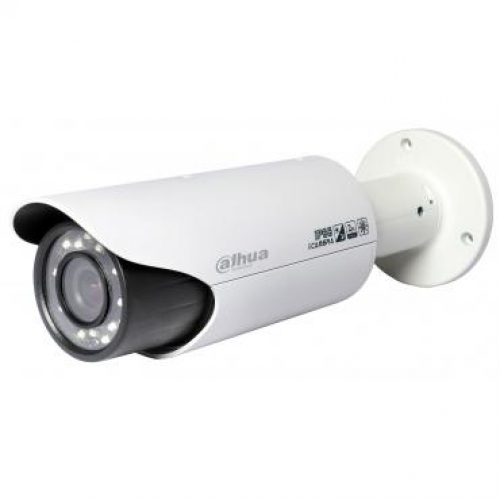

3MP Full HD Network IR Bullet Camera
IC-BR352C IP Camera is part of the Ecco-Savvy Series of megapixel network cameras. This equates to 3 important savings to the user:
- Low consumption - Saving 50% power consumption
- Low steaming - Saving network bandwith and storage
- Ultra low lux - Providing outstanding night imaging quality
Features
- 1/3" 3MP progressive scan Aptina CMOS
- H.264 & MJPEG dual-stream encoding
- Max 20fps@3M(2048×1536)&25/30fps@1080P(1920×1080)
- DWDR
- Day & Night function (ICR)
- 3DNR
- AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3.0mm ~ 9.0mm varifocal motorised lens
- Built-in 2/1 alarm in/out
- Maximum IR LEDs lengths up to 30m
- Micro SD memory
- IP66, PoE

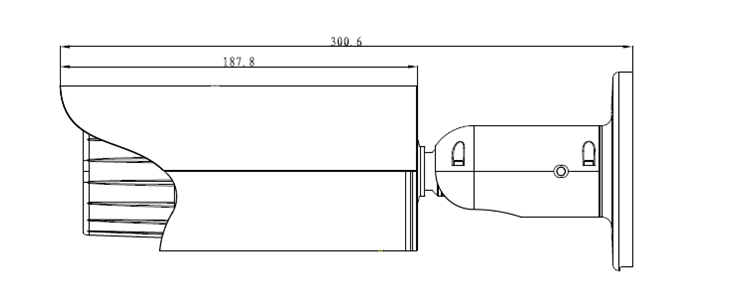

Schematics
Technical Specifications
| IC-BR352C | ||
| Camera | ||
| Image Sensor | 1/3" 3MP progressive scan Aptina CMOS | |
| Effective Pixels | 2048(H) × 1536(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual 1/3~1/10000 | |
| Min. Illumination | Color: 0.01Lux@F1.2; IR on: 0Lux@F1.2 | |
| S/N Ratio | More than 50dB | |
| Video Output | 1 channel BNC（1.0Vp-p，75Ω） | |
| Camera Features | ||
| Max. IR LEDs Length | 30m | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR | |
| White Balance | Auto / Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 3.0mm ~ 9.0mm motorised | |
| Max Aperture | F1.4 | |
| Focus Control | Auto | |
| Angle of View | H: 86.5° (Wide) - 28.6° (Tele) | |
| Lens Type | Motorised / Auto Iris(DC) | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 3M(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1(704×576) /CIF(352×288) | |
| Frame Rate |
Main Stream: 3M(1~20fps)/1080P/720P(1 ~ 25/30fps) Sub Stream: D1/CIF(1 ~ 25/30fps) |
|
| Bit Rate | H.264: 32K ~ 8192Kbps | |
| Audio | ||
| Compression | G.711a/ G.711u/ PCM | |
| Interface | 1/1 channel In/Out | |
| Network | ||
| Ethernet | 1 RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| ONVIF | ONVIF Profile S | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 64GB | |
| RS485 | N/A | |
| Alarm | 2/1 channel In/Out (optional) | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V (AC 24V optional), PoE (802.3af) | |
| Power Consumption | < 9W (AC24V:+2W) | |
| Working Environment | -20°C~+60°C （-H：-40°C~+60°C）, Less than 90%RH | |
| Ingress Protection | IP66 | |
| Vandal Resistance | N/A | |
| Dimension(WxDxH) | Φ104mm x 306.7mm | |
| Weight | 1.25KG | |
