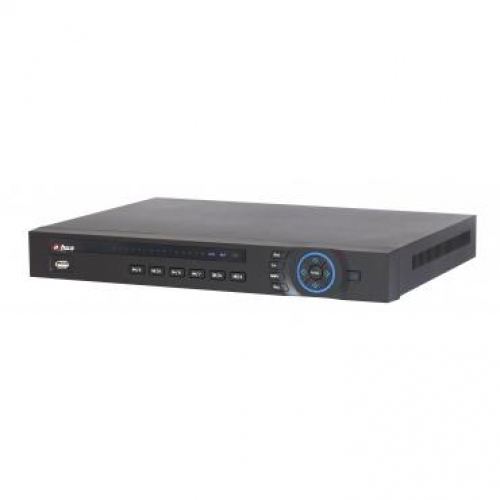

N4208-8P-4K NVR ( Network Video Recorder )
Description
N4208-8P-4K NVR (Network Video Recorder) is a high performance network video surveillance system for high-end, convenient, and reliable IP-based real-time monitoring and video recording. Powered by Dual-core embedded processor CPU, the Linux-embedded NVR supports 8 channel H.264 and M-JPEG recording from Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc. IP-based security cameras. With high performance handle capacity, N4208-8P-4KNVR supports long-term and high performance megapixel recording (up to 12 megapixels) from various IP cameras anytime, anywhere over the web, independent of any PC. and smart mobile phone, iPhone, iPad, Adroid.
|
|
Powerful Features
-
 Up to 8 channel with 1080P realtime live view
-
H.264/MJPEG dual codec decoding
-
Up to 12 megapixels resolution ip camera
-
4K(3840x2160) HDMI/VGA simultaneous video output
-
1 / 4 / 9 channel synchronous realtime playback, GRID interface
-
1 / 4 / 8 / 9 channel synchronous realtime preview, GRID interface
-
Max 256 Mbps recording capacity
-
ONVIF Version 2.4 conformance
-
Support 2 SATA HDDs up to 12TB, 2 USB2.0
-
Support IPC UPnP, 8 PoE ports,
-
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & iPhone, iPad, Adroid(DMSS)
System Connection
PC CMS Software
-
 Register up to 1000 channels connection and 64 live viewing at 1 screen, support max 121(11x11) view
-
Support DVRs, video servers, IP cameras, decoders and other network products connection.
-
PTZ, bidirectional talk, camera settings, color adjustment
-
Support device management, configuration, reboot and other operations
-
Support decoder connection to realize virtual matrix system and video wall display
-
Support different alarm types: external, motion detection, video loss, camera masking and etc.
-
Support video monitoring project, layout configuration, recording plan and etc.
-
Device status and other information provided in the "health report"
-
Support video search from local PC, device itself and other storage center
-
Used for the central monitoring system
Mobile Phone Surveillance Software
 |
|
|
iDMSS for ios System : |
Support iPhone OS 4.1 or higher and iPad |
|
|
|
gDMSS for Android System : |
Support Android OS 2.0 or higher. |
|
|
|
DMSS for Blackberry System : |
Support Blackberry OS 4.6 or higher (Not support 7.0 OS). |
|
|
|
DMSS for Symbian System : |
Support Symbian S60 3rd. |
|
|
|
DMSS for Window Mobile System : |
Support Windows Mobile OS 5.0 or higher. |
|
|
|
DMSS for Windows System : |
Support Windows Phone OS 7.0 or higher |
|
|
|
     |
Technical Specifications
|
N4208-8P-4K |
|
Main Processor |
Dual-core embedded processor |
|
Operating System |
Embedded LINUX |
|
|
|
Video & Audio |
|
IP Camera Input |
8 channel |
|
Two-way Talk |
1 channel Input, 1 channel Output |
|
|
|
Display |
|
Interface |
1 HDMI, 1 VGA |
|
Resolution |
3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 |
|
Display Split |
1 / 4 / 8 / 9 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
|
|
Recording |
|
Compression |
H.264 / MJPEG |
|
Resolution |
12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc. |
|
Record Rate |
Max 256 Mbps |
|
Bit Rate |
48~ 8192kbps |
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
|
|
Video Detection & Alarm |
|
Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
|
Video Detection |
Motion Detection, MD Zones: 396(22x18), Video Loss & Camera Blank |
|
Alarm Input |
8 channel |
|
Relay Output |
3 channel |
|
|
|
Playback & Backup |
|
Sync Playback |
1 / 4 / 9 |
|
Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
Backup Mode |
USB Device / Network |
|
|
|
Network |
|
Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
|
PoE |
8 ports (IEEE802.3at) |
|
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
|
Max. User Access |
128 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
|
|
Storage |
|
Internal HDD |
2 SATA ports, up to 12TB, Raid (redundancy) |
|
|
|
Auxiliary Interface |
|
USB |
2 ports USB2.0 |
|
RS232 |
1 port, For PC communication & Keyboard |
|
RS485 |
1 port, For PTZ control |
|
|
|
General |
|
Power Supply |
NVR: DC12V |
|
Power Consumption |
20W (without HDD), PoE Port: Max.25.5W (each) |
|
Working Environment |
-10°C ~ +55°C / 10% ~ 90%RH / 86~106kpa |
|
Dimension(WxDxH) |
1U, 375mm x 285mm x 55mm |
|
Weight |
2.5KG (without HDD) |
|
|
|
|
