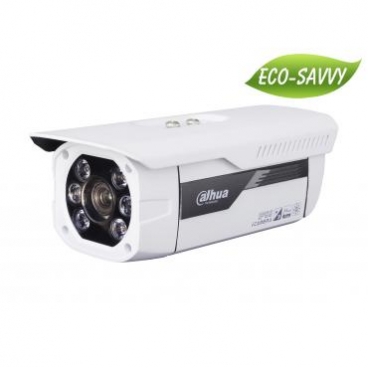

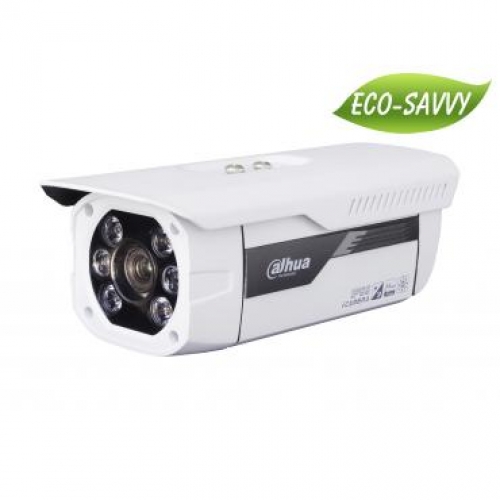

2MP Full HD Water Proof Network IR Bullet Camera
IC-BR250P-0722A IP Camera is part of the Ecco-Savvy Series of megapixel network cameras. This equates to 3 important savings to the user:
- Low consumption - Saving 50% power consumption
- Low steaming - Saving network bandwith and storage
- Ultra low lux - Providing outstanding night imaging quality
Features
- 1/2.8" 2MP progressive scan Exmor CMOS
- H.264, H.264H & MJPEG dual-stream encoding
- Maximum 25/30fps@1080P(1920×1080)
- DWDR
- Day & Night function (ICR)
- Auto Iris
- 3DNR
- AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3.3mm ~ 12mm varifocal lens, (7-22mm varifocal lens optional)
- Maximum IR LEDs lengths up to 100m
- IP66, PoE

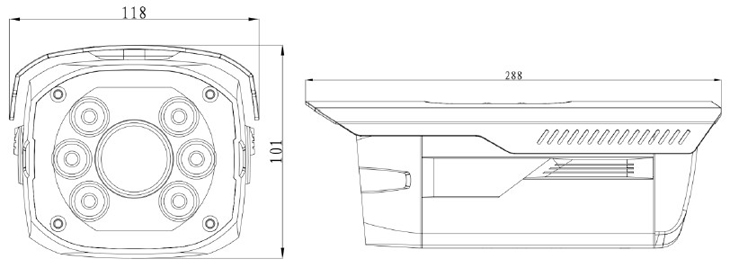

Schematics
.jpg)
Technical Specifications
| IC-BR250P-0722A | ||
| Camera | ||
| Image Sensor | 1/3" 2MP progressive scan Exmor CMOS | |
| Effective Pixels | 1920(H) × 1080(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual 1/3~1/10000 | |
| Min. Illumination | Color: 0.01Lux@F1.2; B/W: 0.005Lux@F1.2; IR on: 0Lux@F1.2 | |
| S/N Ratio | More than 50dB | |
| Video Output | 1 channel BNC（1.0Vp-p，75Ω） | |
| Camera Features | ||
| Max. IR LEDs Length | 100m | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR | |
| White Balance | Auto / Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 3.3mm ~ 12mm (7~22mm optional) | |
| Max Aperture | F1.4 | |
| Focus Control | Manual | |
| Angle of View | H: 85°~36°(H: 41°~14.1°optional) | |
| Lens Type | Manual/Auto Iris(DC) | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264 / H.264H / MJPEG | |
| Resolution | 1080P(1920×1080) / 720P(1280×720) / D1(704×576) /CIF(352×288) | |
| Frame Rate |
Main Stream: 1080P/720P(1 ~ 25/30fps) Sub Stream: D1/CIF(1 ~ 25/30fps) |
|
| Bit Rate | H.264: 32K ~ 8192Kbps | |
| Audio | ||
| Compression | G.711a/G.711u(64kbps)/PCM(128kbps) | |
| Interface | 1/1 channel In/Out | |
| Network | ||
| Ethernet | 1 RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, GB28181 | |
| ONVIF | ONVIF Profile S | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 32GB | |
| RS485 | N/A | |
| Alarm | 2/1 channel In/Out (optional) | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V, PoE (802.3af) | |
| Power Consumption | Maximum 14.5W | |
| Working Environment | -20°C~+60°C, Less than 95%RH | |
| Ingress Protection | IP66 | |
| Vandal Resistance | N/A | |
| Dimension(WxDxH) | 288mm×118mm×101mm | |
| Weight | 2.5KG | |
