HDCVI (High Definition Composite Video Interface) is an over-coaxial-cable analog HD video transmission standard which developed in-house. The technology renders two HD video formats�X1920H (1920x1080) & 1280H (1280x720) by progressive scanning.
Technical Highlights
|
|
Powerful Features
-
 1/2.7" 2Megapixel CMOS
-
25fps@1080P(1920x1080)
-
High speed, long distance real-time transmission
-
Day/Night(ICR), AWB, AGC, BLC
-
2.7~12mm lens
-
Max. IR LEDs length 30m, Smart IR
-
Ingress Protection: IP67
-
DC12V
-
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & iPhone, iPad, Adroid(DMSS)
PC CMS Software
-
 Register up to 1000 channels connection and 64 live viewing at 1 screen, support max 121(11x11) view
-
Support DVRs, video servers, IP cameras, decoders and other network products connection.
-
PTZ, bidirectional talk, camera settings, color adjustment
-
Support device management, configuration, reboot and other operations
-
Support decoder connection to realize virtual matrix system and video wall display
-
Support different alarm types: external, motion detection, video loss, camera masking and etc.
-
Support video monitoring project, layout configuration, recording plan and etc.
-
Device status and other information provided in the "health report"
-
Support video search from local PC, device itself and other storage center
-
Used for the central monitoring system
Mobile Phone Surveillance Software
 |
|
|
iDMSS for ios System : |
Support iPhone OS 4.1 or higher and iPad |
|
|
|
gDMSS for Android System : |
Support Android OS 2.0 or higher. |
|
|
|
DMSS for Blackberry System : |
Support Blackberry OS 4.6 or higher (Not support 7.0 OS). |
|
|
|
DMSS for Symbian System : |
Support Symbian S60 3rd. |
|
|
|
DMSS for Window Mobile System : |
Support Windows Mobile OS 5.0 or higher. |
|
|
|
DMSS for Windows System : |
Support Windows Phone OS 7.0 or higher |
|
|
|
     |
Technical Specifications
|

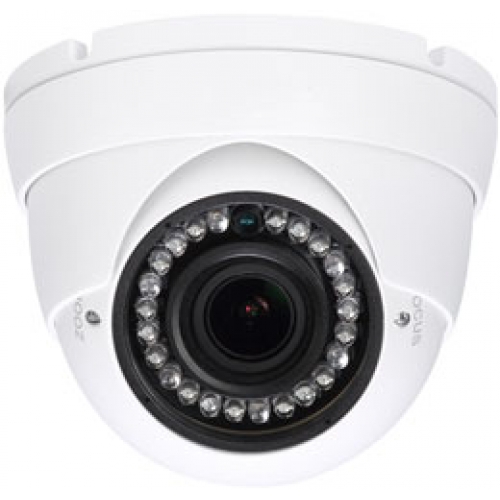

HAC-HDW1200R-VF |
|
Image Sensor |
1/2.7" 2Megapixel CMOS |
|
Effective Pixels |
1080P(1920x1080) |
|
Electronic Shutter |
1/3(4)~1/10000s |
|
Synchronization |
Internal |
|
Min. Illumination |
0.01Lux ,0Lux IR on |
|
Video Output |
1-channel BNC HDCVI high definition video output |
|
|
|
Camera Features |
|
Max. IR LEDs Length |
30m, Smart IR |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Noise Reduction |
2D |
|
|
|
Lens |
|
Focal Length |
2.7~12mm Lens |
|
Mount Type |
Board-in Type |
|
|
|
Video |
|
Compression |
H.264/ MJPEG |
|
Resolution |
Up to 1080P(1920x1080) |
|
Frame Rate |
25fps@1080P(1920x1080) |
|
Bit Rate |
H.264: 32K ~ 8192Kbps |
|
|
|
General |
|
Power Supply |
DC12V |
|
Power Consumption |
Max 3W |
|
Working Environment |
-30°C~+60°C / Less than 95%RH (no condensation) |
|
Transmission Distance |
Over 500m via Ø75-3(RG-59) coaxial cable |
|
Ingress Protection |
IP67 |
|
Dimensions |
Ø119 x 98 mm |
|
Weight |
0.55 |
|
|
|
