2MP 1080P HDCVI IR PTZ DOME CAMERA 20X ZOOM 2.7-12mm Lens

2MP 1080P HDCVI IR PTZ DOME CAMERA 20X ZOOM 2.7-12mm Lens
2MP 1080P HDCVI IR PTZ DOME CAMERA 20X ZOOM 2.7-12mm Lens
Product Code: HAC-SD6C220I-HC
Reward Points: 0
Availability: In Stock
   - OR -

HDCVI (High Definition Composite Video Interface) is an over-coaxial-cable analog HD video transmission standard which developed in-house. The technology renders two HD video formats�X1920H (1920x1080) & 1280H (1280x720) by progressive scanning.

Technical Highlights

  • HD Video format: 1920H(1920x1080) & 1280H(1280x720)
  • Analog Modulation: Uncompressed and crosstalk-free
  • Transmission over coaxial cable: Reliable and non-latency point-to-point transmission
  • Auto Compensation & Long range transmission:
         1280H(1280x720): 500m via Ø75-3(RG-59) / 650m via Ø75-5(RG-6)
         1920H(1920x1080): 300m via Ø75-3(RG-59) / 400m via Ø75-5(RG-6)
  • Composite video/audio/PTZ signals:
         HDCVI composites video, audio and PTZ signals together and have them transmitted over coaxial cable.
  • Two-way data transmission

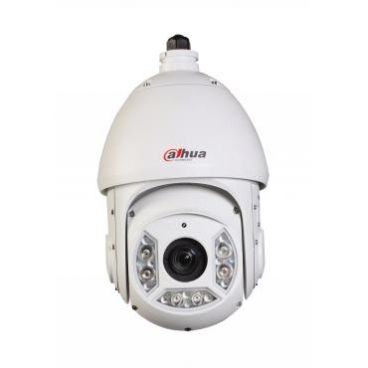

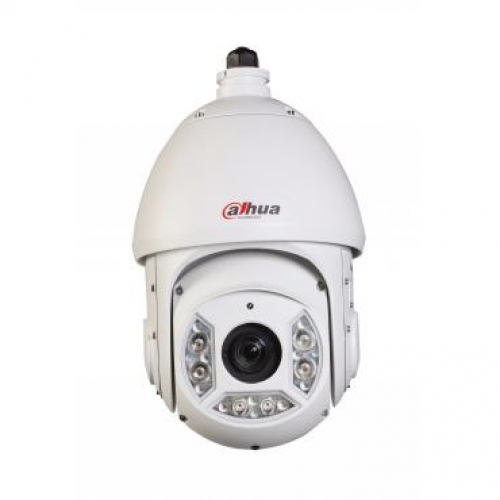

    HAC-SD6C220I HDCVI PTZ Camera



Powerful Features

  • >20x optical zoom
    >Max. 25/30fps @1080P(1920x1080) & 50/60fps @720P resolution
    >DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
    >Control over coaxial cable, long distance real-time transmission
    >HD and SD switchable
    >Max 240°/s pan speed, 360° endless pan rotation
    >Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
    >Built-in 2/1 alarm in/out
    >Support intelligent 3D positioning with DH-SD protocol
    >IR Distance up to 100m
    >IP66, OSD



PC CMS Software

  • Register up to 1000 channels connection and 64 live viewing at 1 screen, support max 121(11x11) view
  • Support DVRs, video servers, IP cameras, decoders and other network products connection.
  • PTZ, bidirectional talk, camera settings, color adjustment
  • Support device management, configuration, reboot and other operations
  • Support decoder connection to realize virtual matrix system and video wall display
  • Support different alarm types: external, motion detection, video loss, camera masking and etc.
  • Support video monitoring project, layout configuration, recording plan and etc.
  • Device status and other information provided in the "health report"
  • Support video search from local PC, device itself and other storage center
  • Used for the central monitoring system



Mobile Phone Surveillance Software

  iDMSS for ios System : Support iPhone OS 4.1 or higher and iPad
  gDMSS for Android System : Support Android OS 2.0 or higher.
  DMSS for Blackberry System : Support Blackberry OS 4.6 or higher (Not support 7.0 OS).
  DMSS for Symbian System : Support Symbian S60 3rd.
  DMSS for Window Mobile System : Support Windows Mobile OS 5.0 or higher.
  DMSS for Windows System : Support Windows Phone OS 7.0 or higher
