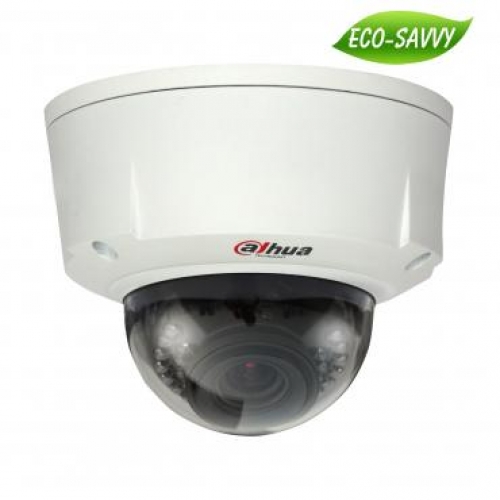

2MP Full HD Vandal Proof Network IR Dome Camera 3-9mm motorized lens
IC-DTR252 IP Camera is part of the Ecco-Savvy Series of megapixel network cameras. This equates to 3 important savings to the user:
- Low consumption - Saving 50% power consumption
- Low steaming - Saving network bandwith and storage
- Ultra low lux - Providing outstanding night imaging quality
| Features | |
|
|
1/3" 2M Progressive Scan CMOS |
|
|
Day & night function with Mechanical ICR |
|
|
Integrated 3~9mm Motorized Megapixel lens |
|
|
Intelligent IR 20m IR night vision |
|
|
Up to 25fps@1080p(1920x1080) |
|
|
Multi-stream with variable frame rate |
|
|
Two-way audio, Micro SD card |
|
|
DC12V, PoE (IEEE 802.3af) |
|
|
IK10, IP66 Vandal Resistance |
|
|
151(Ø) x 119(H) mm |
|
|
1.25Kg |

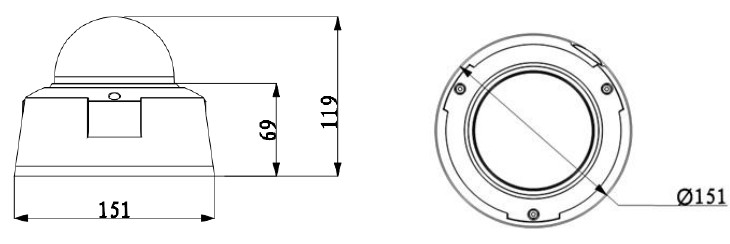

Schematics
Technical Specifications
| IC-DTR250 | ||
| Camera | ||
| Image Sensor | 1/3" 2MP progressive scan Exmor CMOS | |
| Effective Pixels | 1920(H) x 1080(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual 1/3~1/10000 | |
| Min. Illumination | Color: 0.1Lux@F1.4; IR on: 0Lux@F1.4 | |
| S/N Ratio | More than 50dB | |
| Video Output | 1 port | |
| Camera Features | ||
| Max. IR LEDs Length | 20m | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR | |
| White Balance | Auto | |
| Gain Control | Auto / Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 3 ~ 9mm motorized | |
| Max Aperture | F1.4 | |
| Focus Control | Auto | |
| Angle of View | H: 100° (Wide) ~ 30° (Tele) | |
| Lens Type | Manual/Auto Iris (DC) | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 1080P(1920×1080)/ 720P(1280×720) / D1(704×576) / CIF(352×288) | |
| Frame Rate |
Main Stream: 1080P/720P(1 ~ 25/30fps) Sub Stream: D1/CIF(1 ~ 25/30fps) |
|
| Bit Rate | H.264: 32K ~ 8192Kbps | |
| Audio | ||
| Compression | G.711a /G.711u /PCM | |
| Interface | 1/1 channel In/Out | |
| Network | ||
| Ethernet | 1 RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| ONVIF | ONVIF Profile S | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 64GB | |
| RS485 | N/A | |
| Alarm | 1/1 channel In/Out (optional) | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | AC24V/DC12V, PoE (802.3af) | |
| Power Consumption | Maximum 5W | |
| Working Environment | -20°C~+60°C, Less than 90%RH | |
| Ingress Protection | IP66 | |
| Vandal Resistance | IK10 | |
| Dimension(WxDxH) | Φ151mm x 119mm | |
| Weight | 1.25KG | |
